Penetration Grade

Penetration Grade Bitumen is a versatile and essential material in the construction and infrastructure industry. Whether you’re building roads, waterproofing structures, or creating durable roofing materials, bitumen plays a crucial role. Among the various bitumen classifications, penetration grade bitumen stands out as one of the most commonly used. In this blog post, we’ll explore what bitumen is, and delve deeper into the world of penetration grade bitumen, highlighting its types and applications. What is Bitumen? Bitumen, often referred to as asphalt or tar, is a highly viscous and sticky black or brown substance derived from the distillation of crude oil. It has been used for centuries in various applications, primarily due to its remarkable waterproofing and adhesive properties. Bitumen is a binder, and when mixed with aggregates, it forms asphalt concrete, which is widely used in road construction.   Penetration Grade Bitumen: An Overview Penetration grade bitumen, also known as penetration-graded asphalt, is a class of bitumen that is widely used in road construction, asphalt pavements, and other applications where resistance to wear and traffic loads is crucial. The penetration test involves determining the depth (in tenths of a millimeter) to which a standard needle penetrates the bitumen sample under specific conditions of time, temperature, and load. Types of Penetration Grade Bitumen Penetration grade bitumen is categorized into several types, each suited to different environmental conditions and applications. The most commonly used penetration grades include:

1. Penetration Grade 60/70: A commonly used bitumen grade that offers a balance between hardness and flexibility. Suitable for moderate to high temperatures and widely used in road construction for medium to heavy traffic loads.
2. Penetration Grade 80/100: Softer than 60/70, this grade is used in regions with lower temperatures and light to medium traffic roads. It provides good workability and adhesion.
3. Penetration Grade 100/120: Softer than 80/100, this grade is typically used in colder climates and for roads with light traffic loads. It allows better flexibility in low temperatures.
4. Penetration Grade 120/150: One of the softest penetration grades, used in extremely cold climates where higher flexibility is required to prevent cracking.

Applications of Penetration Grade Bitumen Penetration grade bitumen has a wide range of applications, including:

1. Road Construction: Penetration grade bitumen is a key component in the production of asphalt mixes used in road construction, offering durability and resistance to environmental stress.
2. Waterproofing: It is used in roofing materials and waterproofing membranes, as it forms a reliable, water-resistant barrier.
3. Pavement Maintenance: Penetration grade bitumen can be used in pavement preservation and maintenance, prolonging the life of existing roads and surfaces.
4. Industrial Use: Industries use this bitumen grade for various applications, including the production of paints, coatings, and adhesives.

Bitumen Penetration Grade 30-40

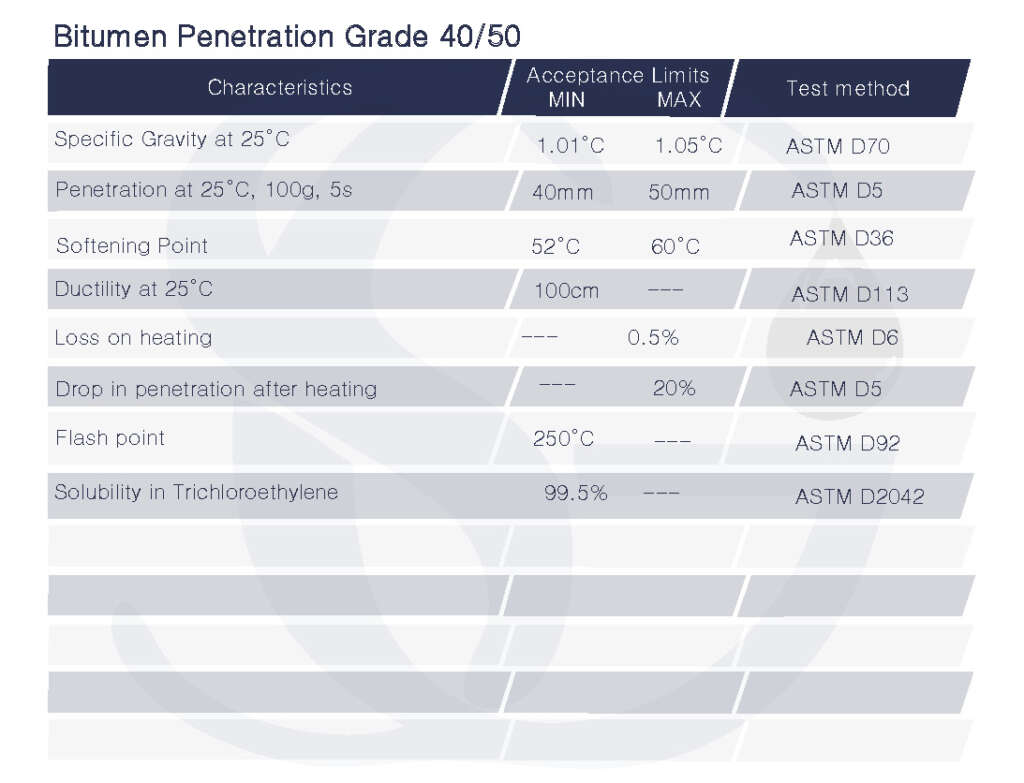

Bitumen Penetration Grade 40-50

Bitumen Penetration Grade 50-70

Bitumen Penetration Grade 60-70

Bitumen Penetration Grade 70-100

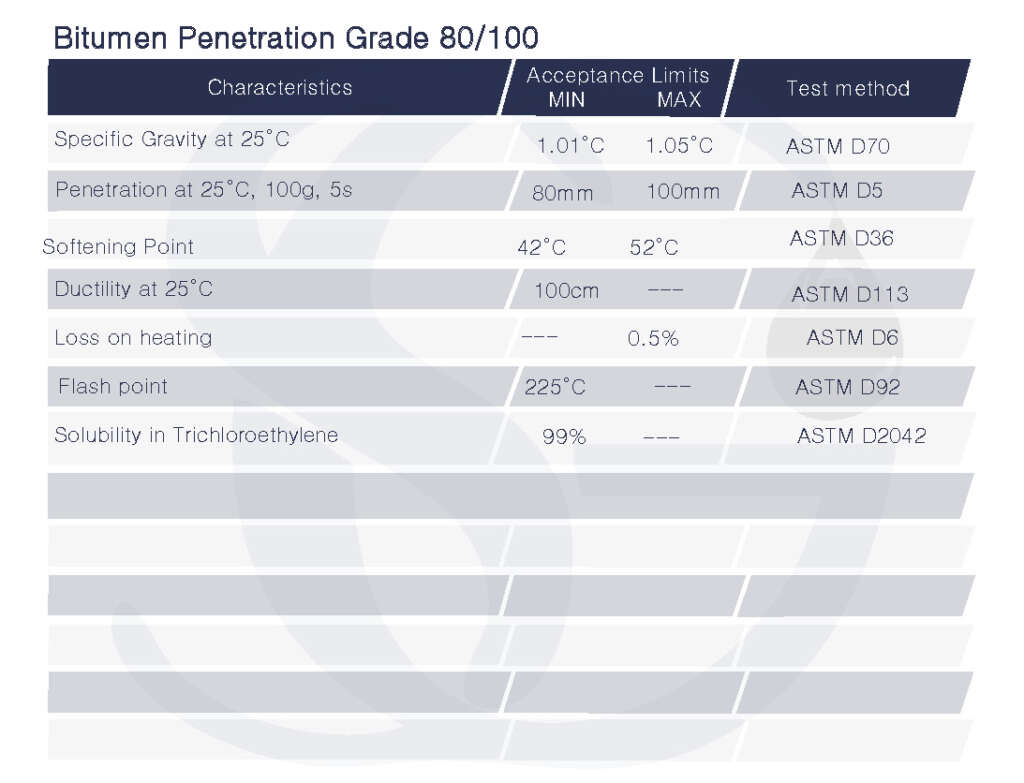

Bitumen Penetration Grade 80-100

Bitumen Penetration Grade 85-100

Bitumen Penetration Grade 100-120
